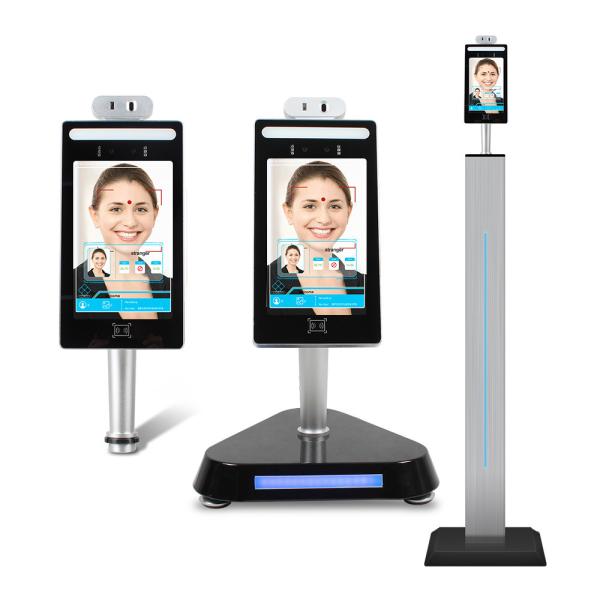

8.0" IPS LCD Screen 150cm Temperature Scanner Kiosk

Shenzhen Libao Xingye Electronics Co., Ltd.

8.0" IPS LCD Screen 150cm Temperature Scanner Kiosk

Brand Name : LB

Model Number : LB-005

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : $490pcs-$580/pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs/month

Delivery Time : 3-5days

Packaging Details : Standard export carton packing. 32X30X10 cmCM/pcs

Type : TFT

Application : Indoor, Public Place

Warranty : 1 year

After-sales Service Provided : Online support

Color : Black

Function : Image Temperature Kiosk

Display : LCD Digital Display

Measuring distance : 50-150cm

Certificate : CE ROHS

Contact Now

Temperature Kiosk mart Thermal Imaging Display Temperature Scanner Kiosk

Parameters

Camera

Resolution
2 million pixels
Camera Type binocular wide dynamic camera
Aperture F2.4
Focusing distance 50-150cm
White Balance Auto
Photo flood light LED and infrared double flood light

Screen

Screen size 8.0 "IPS LCD Screen
Resolution 800 × 1280
Touch optional support
Processor CPU RK3288 quad core (optional rk3399 six core, msm8953 eight core)
Storage EMMC 8G

Interface

Network module Supports Ethernet, wireless (WiFi)
Audio support 2.5W/4R
USB 1 USB OTG, 1 USB host standard A port
Serial communication 1 RS232 serial port
Relay output 1 door opening signal output
Wigan interface 1 Wigan 26 / 34 output,1 Wigan 26 / 34 input
Wired Network 1 RJ45 Ethernet socket
Upgrade button supports the uboot upgrade
Function Card reader optional IC card reader/ID card
Face recognition support detection and tracking of multiple people at the same time
Face Library UP to 30,000
1:N face recognition Support
1:1 face comparison Support
Stranger detection Support
Identify distance configuration Support
UI interface configuration Support
Upgrade remotely Support
Interface
Interfaces include device management, personnel
/ photo management, record query, etc.
Deployment
method
Support public cloud deployment, privatized
deployment, LAN use, stand-alone use
Infrared thermal
imaging module
Body temperature detection support
Temperature detection distance 1m (the best distance is 0.5m)
Temperature measurement accuracy ≤± 0.5 oC
Temperature measurement range 10 oC ~ 42 oC
Visitors model support for normal temperature of visitors
Temperature alarm support

Main Features:
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:N comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

8.0" IPS LCD Screen 150cm Temperature Scanner Kiosk

8.0" IPS LCD Screen 150cm Temperature Scanner Kiosk

8.0" IPS LCD Screen 150cm Temperature Scanner Kiosk

Care and Maintenance:
1. During the installation and use of the product, all electrical safety regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.For specific requirements of the power adapter, see the product parameter table.
3. When installing on the gate, please make sure that the product is installed firmly.
4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all passwords and other related product security settings, and keeping your user name and password properly.
7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.
8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrosion during installation and use.
